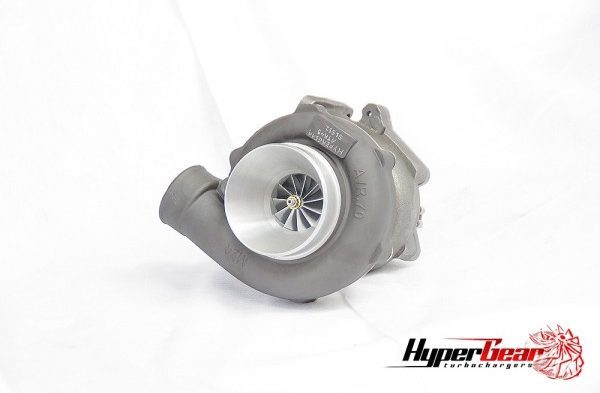

ATR-SLSS2 520HP T3x Turbocharger

Name: ATR-SLSS2 520HP T3x Turbocharger
SKU: ATR-SLSS2
Price: 1250.00 AUD
Availability: InStock

$1,250.00

ATR43SLSS2 is a turbocharger that uses our SS2 compressor based on L2 type turbine. It is T3x based externally gated turbocharger made to support 520HP. Turbine housings are available in both 8cm and 10cm sizes. This turbocharger must work with an fully operational ..

SKU: ATR-SLSS2 Categories: Best Sellers, Externally Gated Turbochargers, Performance Turbochargers Tags: Hypergear, SLSS2, TD06

Brand: HyperGear
Product Code: ATR-SLSS2

ATR43SLSS2 is a turbocharger that uses our SS2 compressor based on L2 type turbine.

It is T3x based externally gated turbocharger made to support 520HP.

Turbine housings are available in both 8cm and 10cm sizes.

This turbocharger must work with an fully operational blow off valve (BOV).

Inline oil filter is strongly recommended working with ball bearing options.

The leading time to build is roughly 10 working days.

Please check out our “Dyno results” tab for power figures and vehicle setups using this turbocharger.

Current version released date: 02/10/2018

Warranty: 12 Month unlimited KM warranty comes with all of our turbochargers. Warranty voids if failure caused from Installation faults, Oil starvation, Operational, faults or object damages, We are not liable for the cost of many mechanical charges involved in fitting or removing of the product nor any shipping costs involved.

Weight	9 kg
Dimensions	20 × 20 × 20 cm

Specification

Turbochargers
Specifications	520HP. T3 turbine print. Turbine A/R in 8cm or 10cm. Journal or Ball bearing CHRA. For externally gated applications.
Engine	Suitable for any 2~ 3L engines
Warranty	HyperGear built turbochargers comes with 12 month unlimited KMs warranty. This warranty does not cover failures cased from foreign objects or oil related issues.

Dyno Results

Evaluation car (R33 S1 Rb25det):
CP 9:1 forged pistons Super Tech Valve springs Power Enterprise 800cc injectors Adaptronic plug-in ECU Greedy Profect B EBC 600x300x75mm PWC Cooler kit 3.5inches Turbo back exhaust Brae side mount manifold HPVA 50mm external gate Split fire coil pack

Final result of 385 @ 23psi peek on E85 Fuel.


R33 Rb25det Stock engine Brae exhaust manifold HPVA 50mm external gate HyperGear SLSS2 Turbocharger 600x300x75mm Intercooler kit 3inches turbo back exhaust 1000CC injectors Power FC E85 Fuel
Final result of 356rwkws @ 20psi E85
