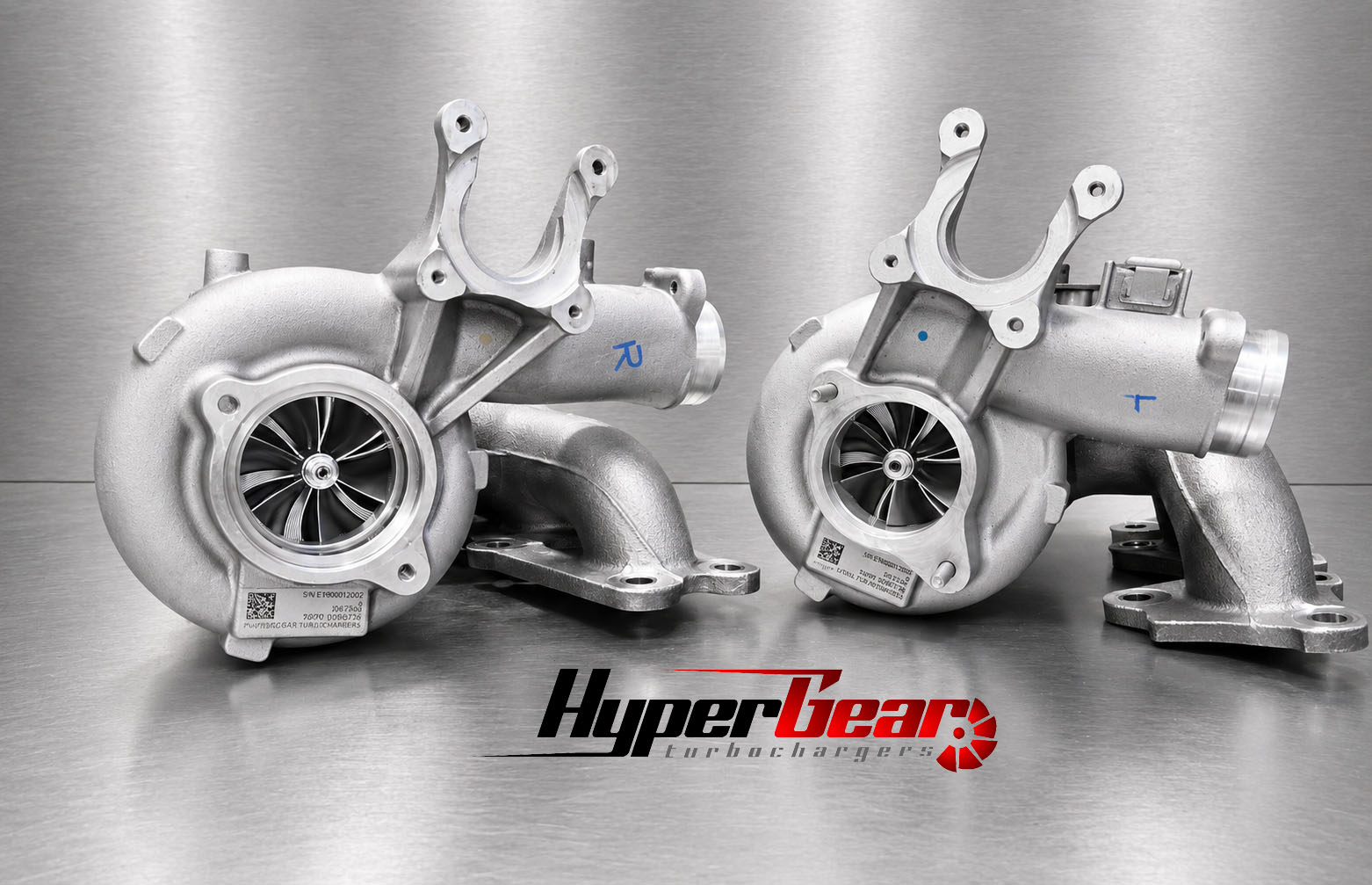

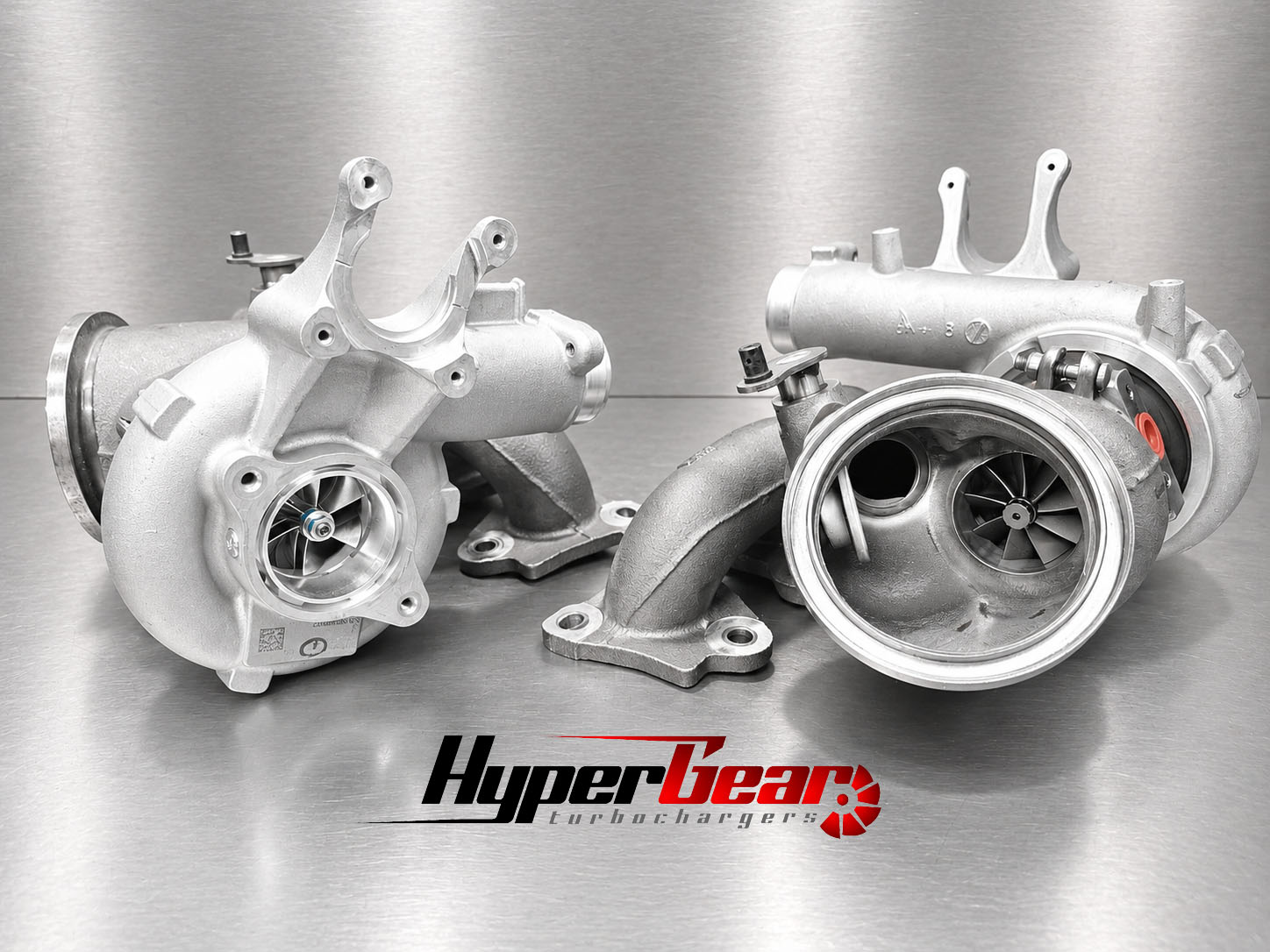

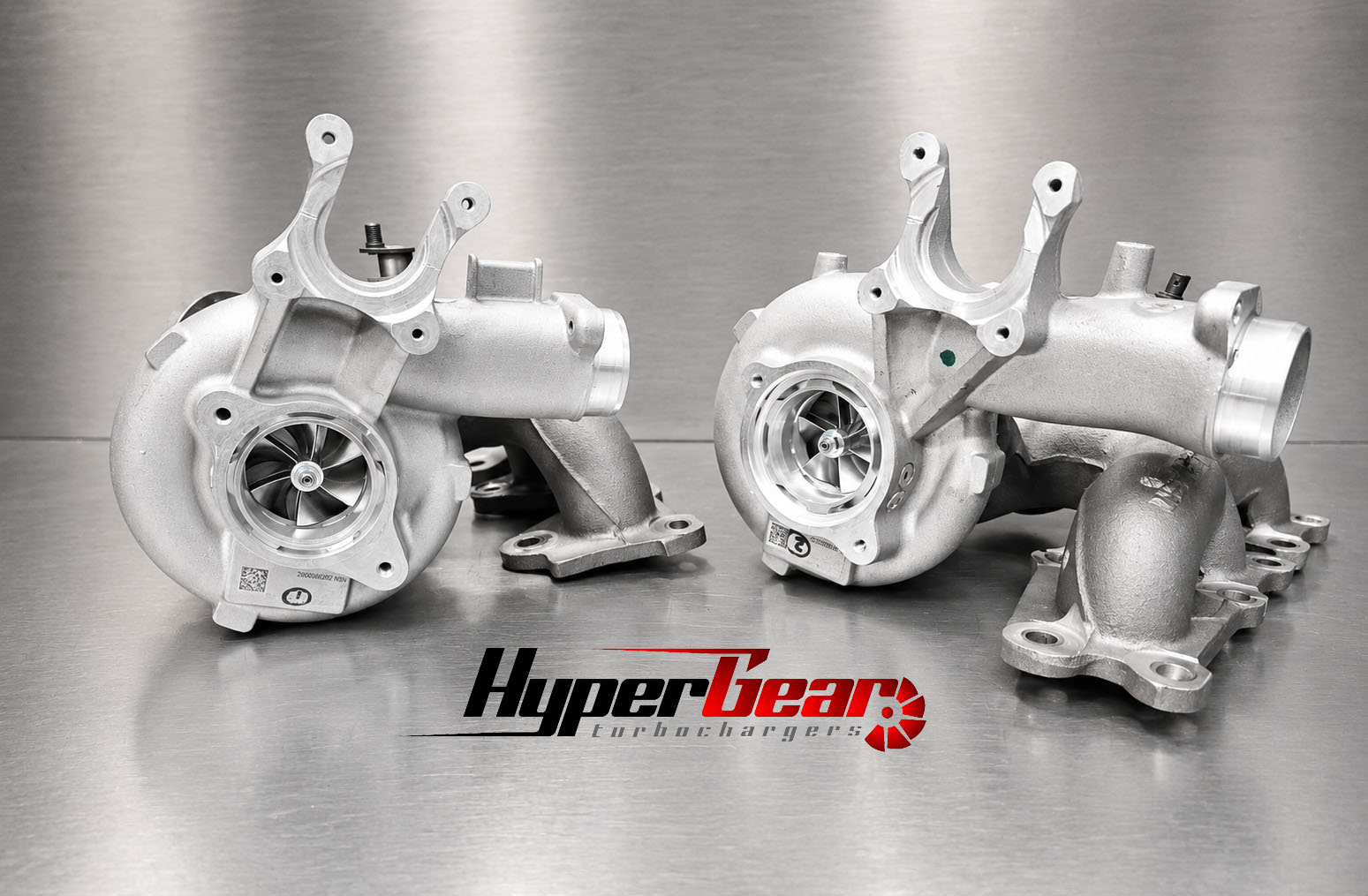

BMW M2 competition / M3 / M4 S55 TF035HL4W High flow service


BMW M2 competition / M3 / M4 S55 TF035HL4W High flow service. Billet front wheel and larger turbine, up to 750BHP.

Additional Components

Product price
Additional options total:
Order total:
SKU: 53049880090 K04-1-1 Category: Tags: , , , , , , ,

Product Code: BMW M2 competition / M3 / M4 S55 TF035HL4W

Factory turbochargers received:
Over hual service with brand new bearing and seal kit
Upsized thrust collar assembly

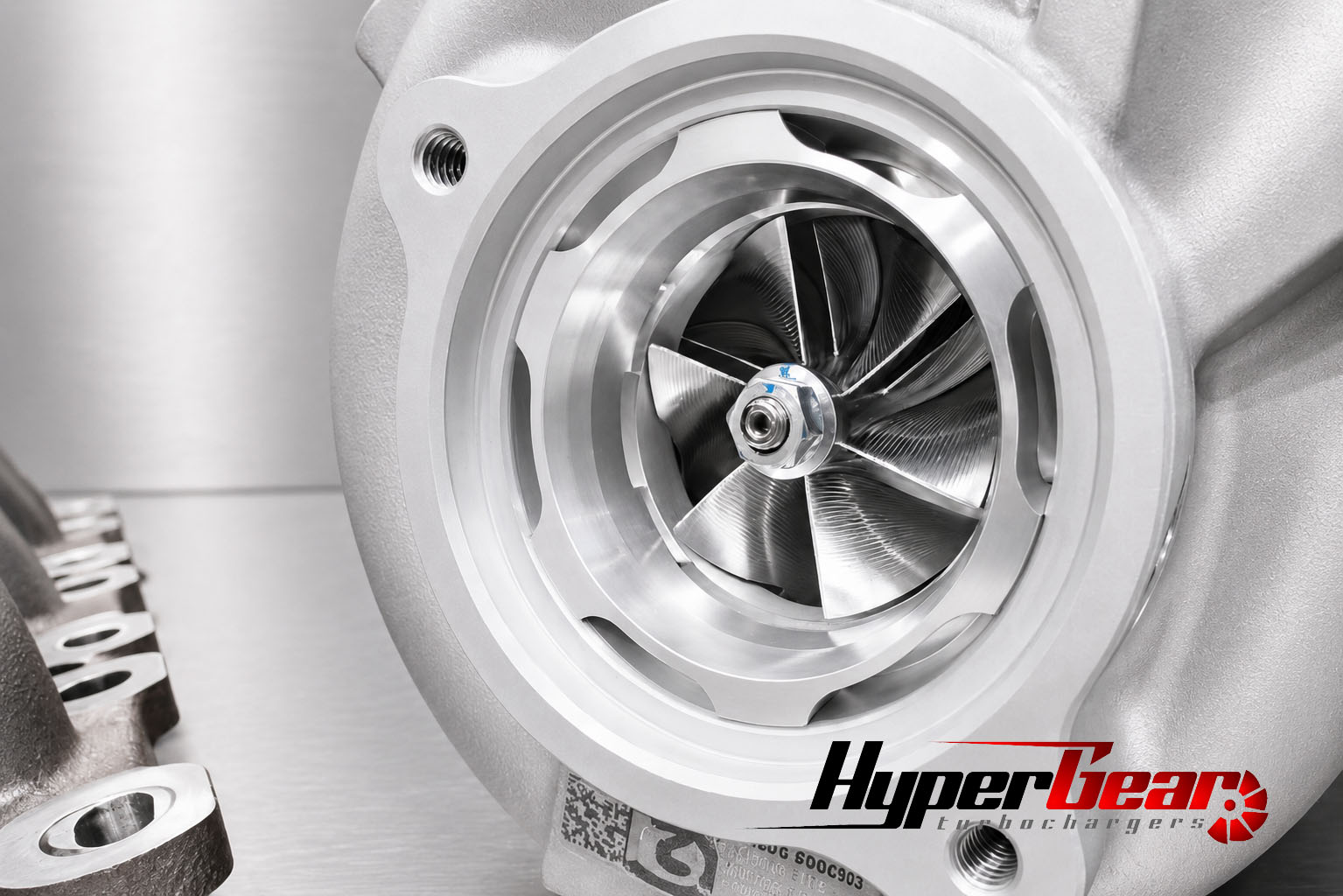

Upsized billet compressor wheel
Upsized turbine wheel
Profile machined compressor and turbine housings

Profile option: SS2: Up to 750BHP

Bush bearing version of high flowed turbocharger bolt back with none/minimum fabrication work. Supporting mods and tuned ecu is strongly recommended working with high flowed turbocharger. The leading time to have the job completed is roughly 15 business days.

Ball bearing option is highly recommended, it is capable of handeling higher boost pressure. Aftermarket braided water and oil lines is required for that to work, intake and cooler piping might need fabrication work to suit the height differences of the all bearing center housing.

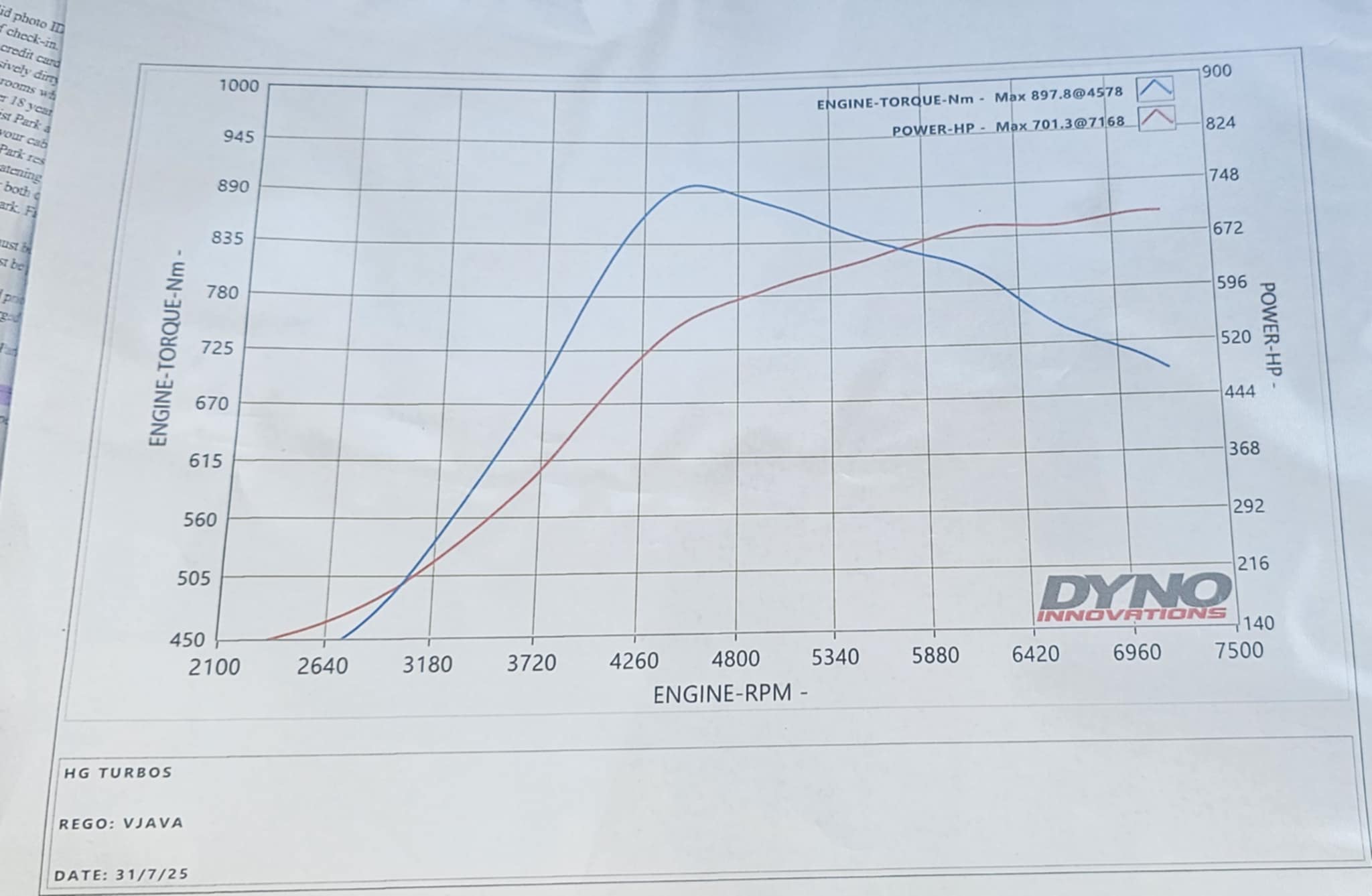

Result taken from a 2017 M4 S55, with upgraded cooler kit, intake, exhaust and ported injection. Final result was 508rwkws @ 22psi on E85 fuel. Turbochargers are capable of higher power levels at higher boost levels.

Warranty: 12 Month unlimited KM warranty comes with all of our turbochargers. Warranty voids if failure caused from Installation faults, Oil starvation, Operational, faults or object damages, We are not liable for the cost of many mechanical charges involved in fitting or removing of the product nor any shipping costs involved.

Weight 10 kg
Dimensions 30 × 30 × 30 cm
Profile options

SS2 750HP
