ATR45SS 700HP~800HP Internally turbocharger for Ford XR6 BA FG

$1,700.00

This ball bearing turbocharger is made as a factory Ford XR6 BA/FG upgrade replacement. Please note factory oil line must be replaced with its micro filter removed before the installation of the new turbocharger. Please download and make sure pre-installation instructions are read and fully und..

Clear

Additional Components

Externally gated Turbine housing, screamer pipe with Turbosmart 45mm gate

Product price
Additional options total:
Order total:

Brand: HyperGear
Product Code: ATR45SS-2

This ball bearing turbocharger is made as a factory Ford XR6 BA/FG upgrade replacement. Please note factory oil line must be replaced with factory micro filter removed before the installation of the new turbocharger. Our inline oil filter is strongly recommended if ball bearing option is selected. Please download and make sure pre-installation instructions are read and fully understood before installation. Factory housing orientation is for a FG unless advised.

Braided oil feeding line is strongly recommended.

Subject to Ford XR6 turbos, both of the ATR45SS profiles are recommended working with a setup that has modified fuel and management system. The ATR45SS-2 model is best working with an externally gated setup, dyno result shown 521rwkws @ 20psi on E85 fuel with a stock FG engine and supporting mods.

This turbocharger must work with an fully operational blow off valve (BOV).

The leading time to build is up to 10 working days.

Current version release date: 24/02/2020

Warranty: 12 Month unlimited KM warranty comes with all of our turbochargers. Warranty voids if failure caused from Installation faults, Oil starvation, Operational, faults or object damages, We are not liable for the cost of many mechanical charges involved in fitting or removing of the product nor any shipping costs involved.

Weight 9 kg
Dimensions 20 × 20 × 20 cm

Dyno results

Results:

FG Barra engine in R31 Wagon
Factory Barra engine
Externally gated
Haltec ECU
1650cc ID injectors
Dual Walbro 520L fuel pumps
577rwkws @ 25psi E85 fuel

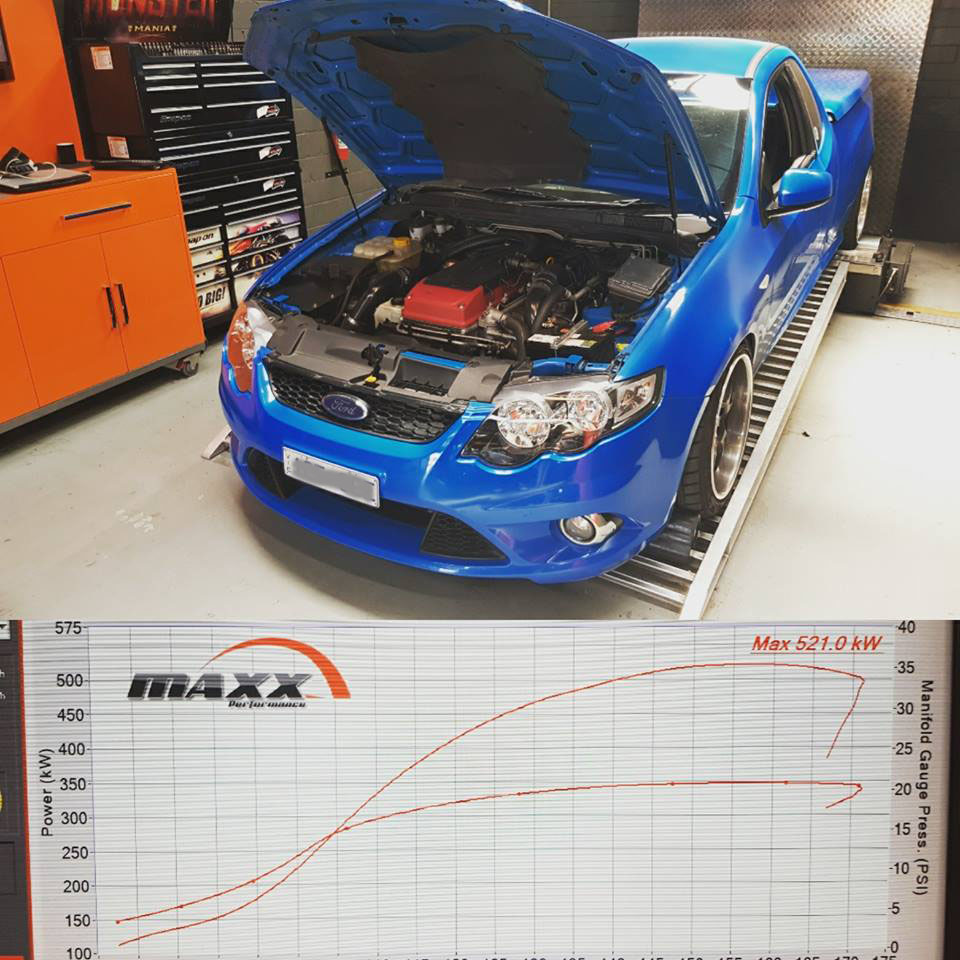

Ford FG Ute, Standard engine with ATR45SS-2,
externally gated rear housing and E85 fuel. 521rwkws @ 20psi
