ATR28SS T2 350~500HP SR20det / CA18det upgrade turbochargers

$1,200.00

ATR28SS turbochargers uses our customized billet compressor wheels, engineered for high performance SR20det or majority of 4 cylinder 1.5~2.5L engines. SS series turbochargers are fitted with small, lite, and highly efficient billet compressor wheels. Improves throttle response an..

Clear

Additional Components

Product price
Additional options total:
Order total:

Brand: HyperGear
Product Code: ATR28SS

ATR28SS turbochargers uses our customized billet compressor wheels, engineered for high performance SR20det or majority of 4 cylinder 1.5~2.5L engines.

SS series turbochargers are fitted with small, lite, and highly efficient billet compressor wheels. Improves throttle response and drive ability.

There are total of four different options available, rating from 350HP to 500HP based in .64 and .86 turbine housings. For low mount CA/SR, .64 is recommended.

For CA18det / SR20det applications, please note there is a 3mm differences in between T25 and T28 housings in two of the dump studs, most aftermarket dump pipes does allow the extra clearance, in case of factory dump pipes, about 1.5mm might needs to be filled.

ATR828SS15 and SS2 are recommended for built engines that will run a minimum boost pressure of 19psi in a free flow system. Please reference to our dyno result section.

This turbocharger must work with an fully operational blow off valve (BOV).

The leading time to build is around 10 business days.

Please check out or “Dyno results” tab for power figures and vehicle setups using this range of turbochargers.

Current version release date: 09/05/2018

Warranty: 12 Month unlimited KM warranty comes with all of our turbochargers. Warranty voids if failure caused from Installation faults, Oil starvation, Operational, faults or object damages, We are not liable for the cost of many mechanical charges involved in fitting or removing of the product nor any shipping costs involved.

Weight 9 kg
Dimensions 20 × 20 × 20 cm

Dyno Results





Results:

JE forged pistons
Tomei Valve springs
BC Stage 2 cams (265 / 12.05)
Factory Nissan VTC enabled
ID 1650cc injectors
Adaptronic plug-in ECU
600x300x75mm PWR Cooler kit
3.5inches Xforce turbo back exhaust
Split fire coil packs
Steam pipe exhaust manifold

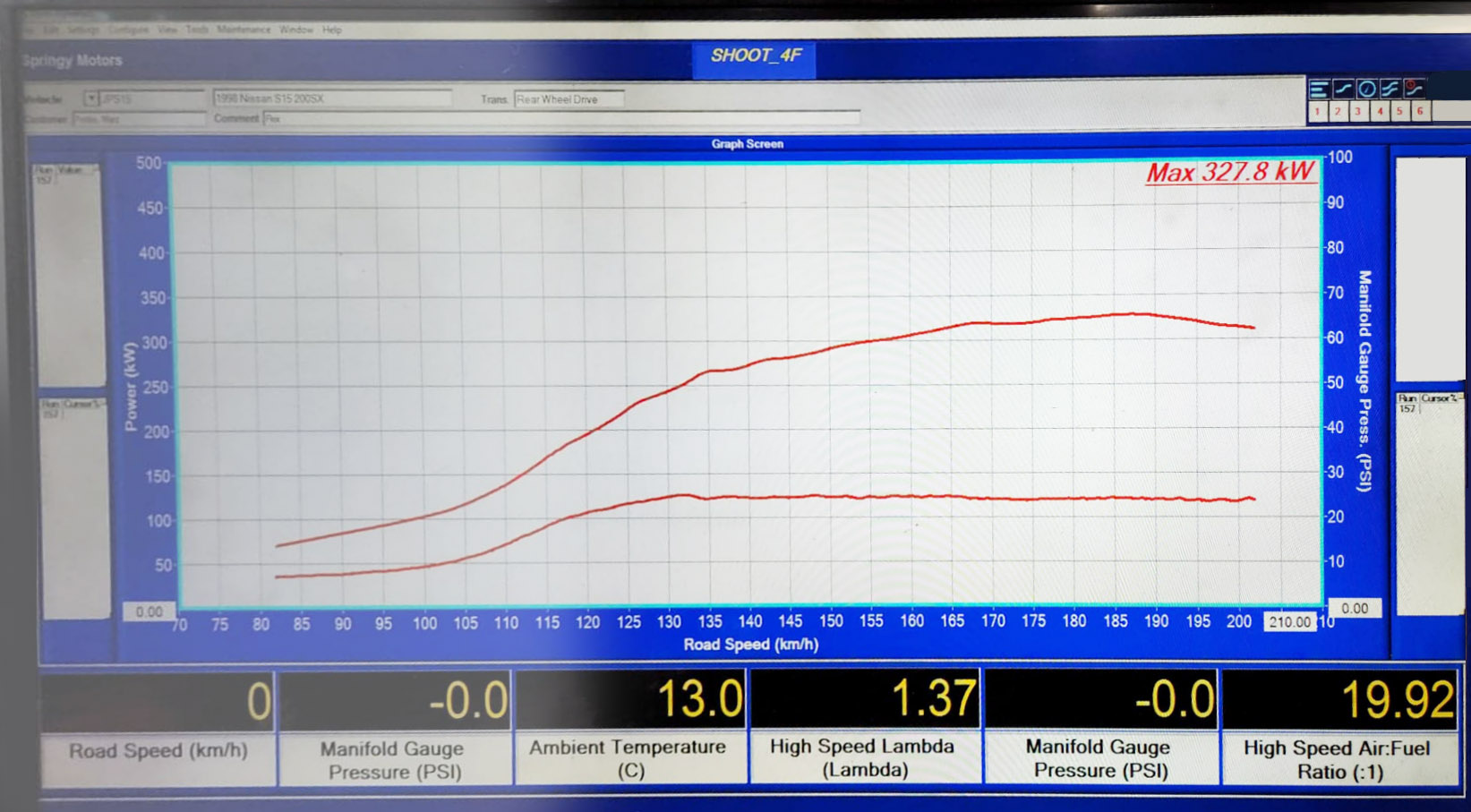

ATR28SS1.5 281rwkws @ 23psi, 264rwkws @ 19psi, Pump 98 / Ron 93, VTC Enabled
Boost
ATR28SS1.5 327rwkws @ 25psi

ATR28SS2 307rwkws @ 24psi Pump 98 / Ron 93 VTC Enabled
