High flow service for Toyota Soarer / Chaser 1JZGTE CT15B turbocharger

(1 customer review)

$1,250.00$1,750.00

This is a service that high flows OEM CT15B Toyota turbocharger. High flowed turbocharger will be fitted with a brand new core with larger steel made wheels and factory housings bored out to suit.

Clear

Additional Components

Factory front housing with .82 Rear

Used Factory standard housings

Product price
Additional options total:
Order total:

Brand: HyperGear
Product Code: CT15BHF

This is a service that high flows factory OEM 1JZGTE-VVTi Turbocharger.

Service includes:
Upsized compressor wheel
Upsized turbine wheel
Profile machined compressor housing
Upgraded turbine housing
Flapper mod assembly upgrade
Optional Actuator assembly upgrade
Optional Ball bearing conversion

Ball bearing centers requires braided water and oil lines to operate, inline oil filter is highly recommended. Oil feeding line and water line banjo adapters can be supplied at additional cost under our additional components tab. Factory oil drain adapter can be modified to suit the new core.

The turn around time required is roughly 10 working days.

This turbocharger must work with an fully operational blow off valve (BOV).

High flowing profiles using our custom .82 turbine housing / new turbo housings:

G3 Profile is capable of making up to 290rwkws on pump 98 or 350rwkws on E85 fuel. It is only recommended working with aftermarket ecu and fuel systems. High pressure actuator assembly is highly recommended.

G4 Profile is capable of making up to 310rwkws on pump 98 or 370rwkws on E85 fuel. It is only recommended working with aftermarket ecu and fuel systems. High pressure actuator assembly is highly recommended.

SS2 Profile features custom billet compressor wheel, is capable of making up to 310rwkws on pump 98 or 370rwkws on E85 fuel with better throttle response. It is recommended working with external gate fitted on the rear housing or exhaust manifold, has the capacity to reach 400rwkws on E85 fuel. This model is again only recommended working with aftermarket ecu and fuel systems. High pressure actuator assembly is highly recommended for internally gated applications.

High flowing profiles using standard turbine housing:

G2 high flow option works with factory mangement and fuel sytem. It is capable of making up to 240rwkws on pump 98 fuel with the right supporting mods and tune.

G3 Profile is capable of making up to 270rwkws on pump 98 or 310rwkws on E85 fuel. It is only recommended working with aftermarket ecu and fuel systems. High pressure actuator assembly is highly recommended.

G4 / SS2 profiles option is only recommended working with our .82 / brand new turbo housings.

Please checkout our “Dyno results” tab for power output in reference to our turbo options as well as engine setups required. Do feel free to contact / email us for recommendations in choosing the right turbocharger for your goal.

How does this service work:
Once order is submitted and paid for, Job has to be either dropped off in person or delivered to our Po.Box.​

Condition of the donor turbo: Donor turbo can be blown, with broken fins, or damaged wheels. Cracked housings depending on the extend of damage has to be repaired prior profiling. Clients will be informed if repairing work is required, quotes will be given before additional work taking places.

Warranty: 12 Month unlimited KM warranty comes with all of our turbochargers. Warranty voids if failure caused from Installation faults, Oil starvation, Operational, faults or object damages, We are not liable for the cost of many mechanical charges involved in fitting or removing of the product nor any shipping costs involved.

Weight 9 kg
Dimensions 20 × 20 × 20 cm

Dyno Results

Results:
Toyota Soarer
5 Speed manual
Factory 1JZGTE-VVTI engine
Aftermarket exhaust manifold
J pipe delete
3 inches intake pipe
3.5 inches turbo back exhaust
600x300x76mm front mount intercooler
1000cc Bosch injectors
Haltech ECU
HyperGear CT15B-G3 ball beaing turbo profile option
Final result of 293rwkws @ 20psi, 200rwkws @ 4000RPM, Pump 98 fuel.
Engine bay:
Power:
Toyota Chaser Auto
Factory 1JZGTE-VVTI engine
Pod filter
3 inches turbo back exhaust
HyperGear CT-15B G3 turbo profile option
600x300x76mm front mount intercooler
850cc Bosch injectors
Greddy E-manage ECU
Final result of 255rwkws @ 20psi, 200rwkws @ 4100RPM, Pump 98 fuel.
Power:
Boost:
Toyota Chaser
5 Speed manual
Factory 1JZGTE-VVTI engine
J pipe delete
3 inches intake pipe
3.5 inches turbo back exhaust
600x300x81mm front mount intercooler
1000cc Bosch injectors
Walbro 450L fuel pump
Haltech ECU
HyperGear CT15B-G3 ball beaing turbo profile option

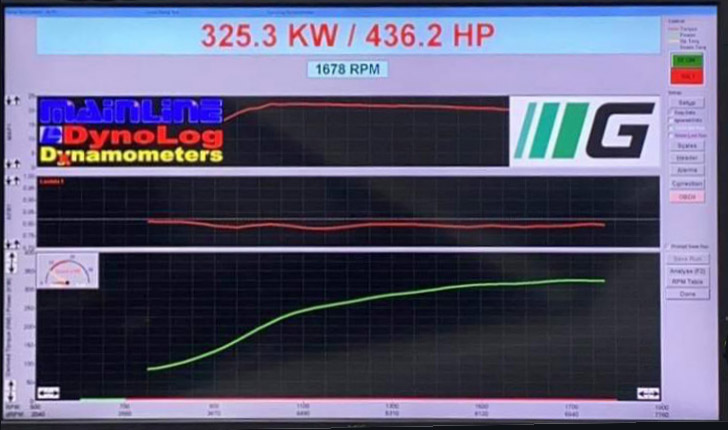

Final result of: 288rwkws P98 / 325rwkws E85, at 20psi
288rwkws @ 20psi Pump 98 fuel
325rwkws @ 20psi E85 fuel
Toyota Soarer
5 Speed manual
Factory 1JZGTE-VVTI engine
Pod filter
3.5 inches turbo back exhaust
600x300x76mm front mount intercooler
1000cc Bosch injectors
Walbro 520L fuel pump
Haltech ECU
HyperGear CT15B-G4 ball beaing turbo profile option
Final result of:
366rwkws @ 23psi E85 fuel, 250rwkws @ 4000RPM.
Engine bay:
Power:
Boost:
Toyota Chaser
5 Speed manual
Factory 1JZGTE-VVTI engine
3.5 inches turbo back exhaust
3 inches intake pipe
Greddy front mount intercooler kit
1000cc Bosch injectors
Walbro 520L fuel pump
Power FC ECU
HyperGear CT15B-G4 ball beaing turbo profile option
Final result of: 372rwkws @ 25psi, 290rwkws @ 4000RPM.

Power:
Boost:
