ATR45SS 700HP~1100HP Externally gated turbocharger kit for Ford XR6 BA FG

$2,450.00$3,250.00

ATR45SS ball bearing turbocharger kit is made as a factory Ford XR6 BA/FG externally gated upgrade replacement.

Clear

Additional Components

Product price
Additional options total:
Order total:

Brand: HyperGear
Product Code: ATR45SS-FordXR6

This ball bearing turbocharger is made as a factory Ford XR6 BA/FG upgrade replacement. Please note factory oil line must be replaced with factory micro filter removed before installation, download pre-installation instructions. Our braided oil line kit and inline oil filter is strongly recommended. Factory housing orientation is for a FG unless advised.

ATR45SS turbochargers are recommended working with a engine setup that has upgraded fuel and management system.

ATR45SS-1 is recommended for responsive road or track use up to 520rwkws.

  • .60 compressor housing with 4 inches  inlet and 2 inches outlet.
  • 1.06 T3 turbine housing with 6 bolt XR6 turbo OEM dump pattern.
  • Similar response and drive ability as standard turbo.
  • This kit bolt on to factory exhaust manifold, dump pipe, water and oil lines.
  • Kit comes with 45mm Turbosmart External gate with screamer pipe.

ATR45SS-2 is recommended for responsive road or track use up to 560rwkws.

  • .60 compressor housing with 4 inches  inlet and 2 inches outlet.
  • 1.06 T3 turbine housing with 6 bolt XR6 turbo OEM dump pattern.
  • This kit bolt on to factory exhaust manifold, dump pipe, water and oil lines.
  • Kit comes with 45mm Turbosmart External gate with screamer pipe.

ATR46SS-1 Kit is recommended for up to 720rwkws.

  • .70 compressor housing with 4 inches, 2 inches outlet, T51R Mod.
  • 1.06 T3 turbine housing with 6 bolt XR6 turbo OEM dump pattern.
  • This kit bolt on to factory exhaust manifold, dump pipe, water and oil drain.
  • Kit comes with 50mm Turbosmart External gate with screamer pipe.

This turbocharger must work with an fully operational blow off valve (BOV).

The leading time to build is up to 10 working days.

Current version release date: 22/3/2023

Warranty: 12 Month unlimited KM warranty comes with all of our turbochargers. Warranty voids if failure caused from Installation faults, Oil starvation, Operational, faults or object damages, We are not liable for the cost of many mechanical charges involved in fitting or removing of the product nor any shipping costs involved.

Weight 12 kg
Dimensions 30 × 30 × 30 cm

Dyno results

Results:
FG Barra engine in R31 Wagon
Factory Barra engine
Externally gated
Haltec ECU
1650cc ID injectors
Dual Walbro 520L fuel pumps
577rwkws @ 25psi E85 fuel

Ford FG Ute
Standard engine with head studs
Upgraded billet oil pump gears
1500cc injectors and 520L pump
ATR45SS-2 turbocharger
externally gated rear housing
E85 fuel. 521rwkws @ 20psi
Factory FG XR6 Built Barra motor
ARP head studs
Atomic valve springs and oil pump
Hypergear ATR46SS-1 Externally gated turbo kit
Processwest stage 2 front mount cooler
3.5 inches turbo back exhaust
4 inches intake pipe
1200cc ID injectors
2x Walbro 460L Fuel pump
Rebuilt factory Auto

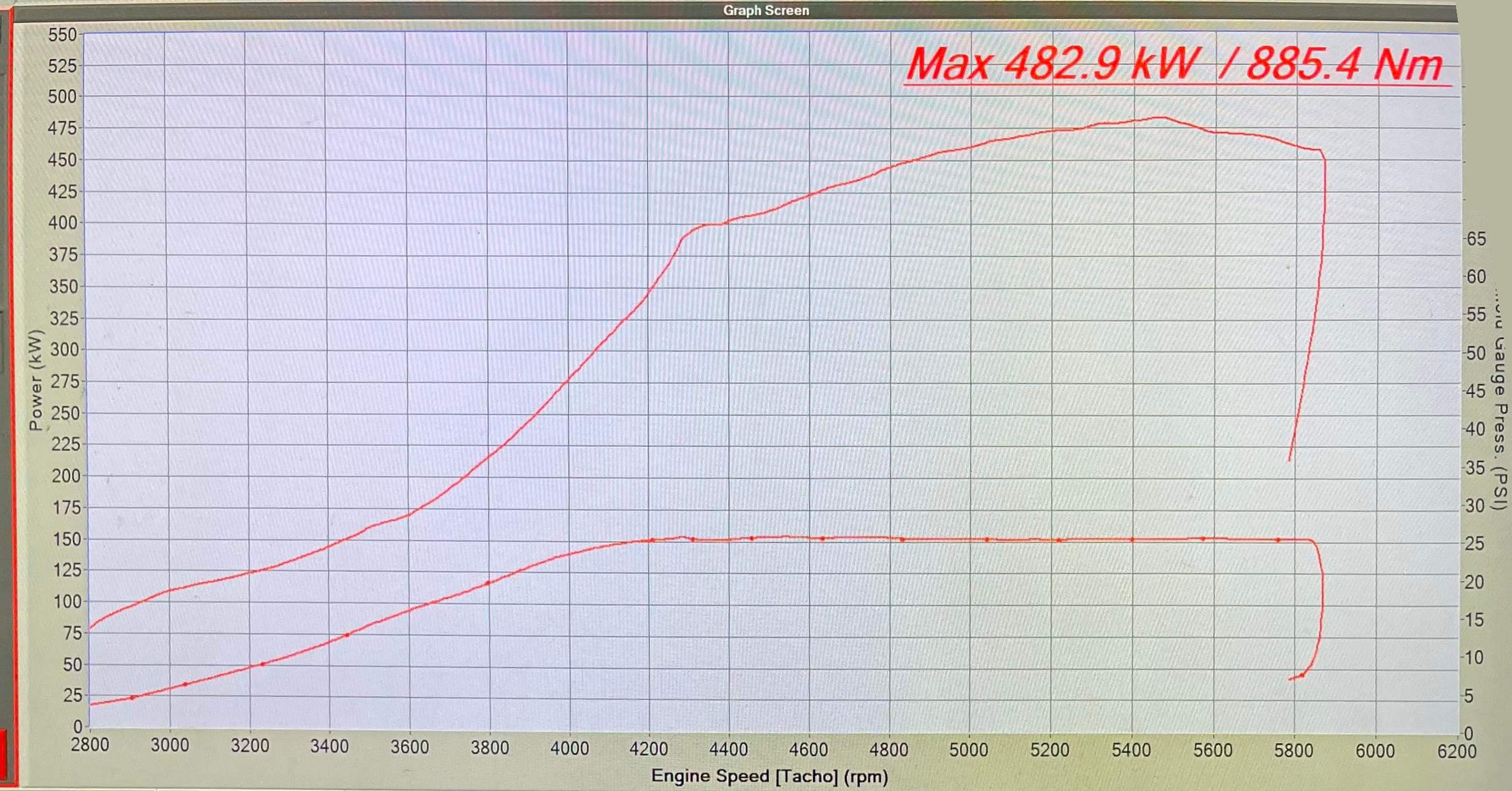

Flashed factory ECU.Final result of 482rwkws @ 25psi on Pump 98 fuel and
716rwkws @ 32psi E85 fuel.
 482rwkws @ 25psi on Pump 98 fuel
716rwkws @ 32psi E85 fuel
