Audi 3L TFSI Audi S4 8W S5 F5 A6 A7 A8 SQ5 Turbocharger High flow service

(1 customer review)

$2,500.00

Factory housings will be stripped and machined to suit a larger CHRA Profile available: SS3 600HP Ball bearing CHRA High flowed turbocharger bolt back to standard position as an OEM turbocharger

Clear
Product price
Additional options total:
Order total:
SKU: Audi KK3 306M145689J, 06M145710E High-Flow service Category: Tags: , , , , , , , , , ,

Product Code: Audi KK3 306M145689J, 06M145710E High-Flow service

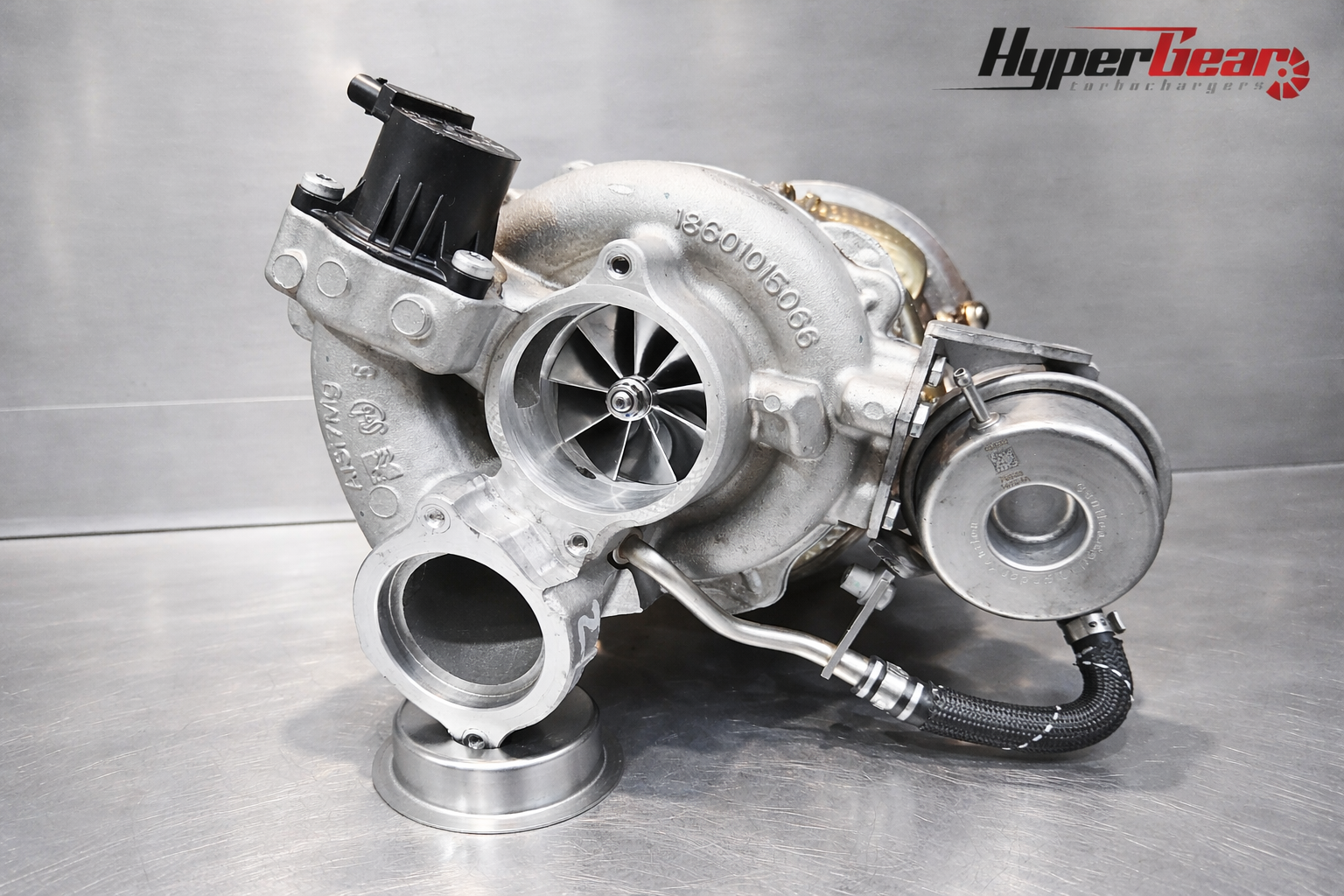

This turbocharger is used in Audi S4 8W S5 F5 A6 A7 A8 SQ5 3L turbocharged models

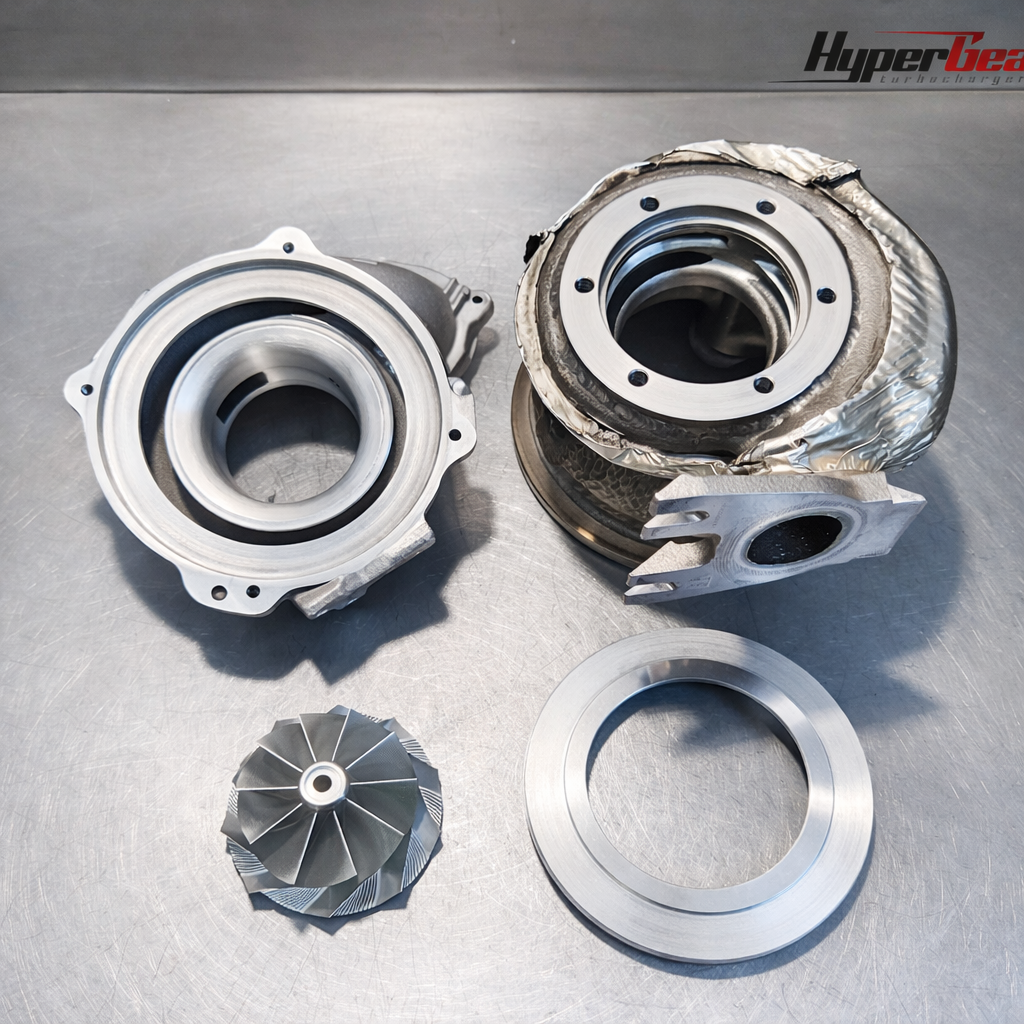

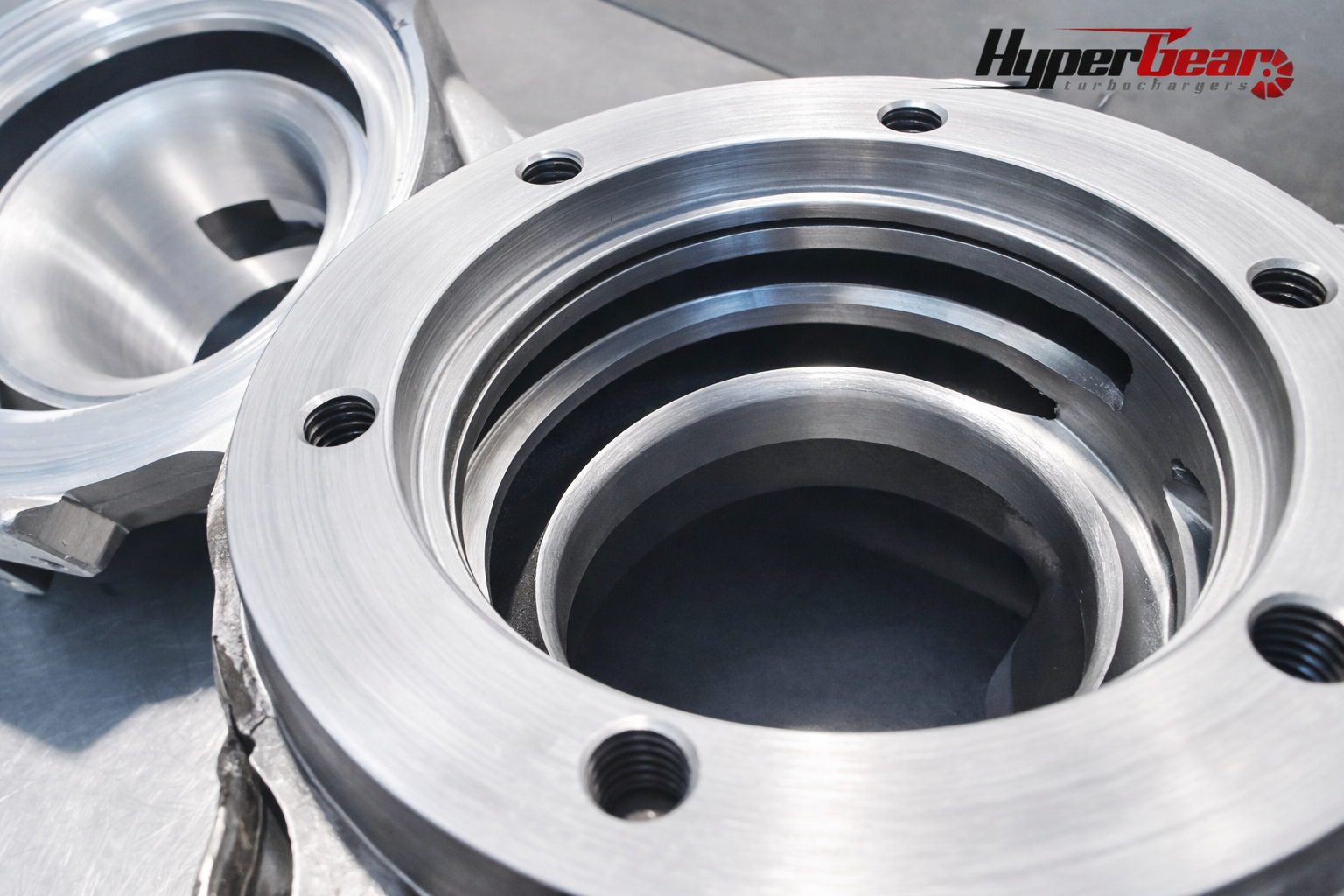

Factory housings will be stripped and machined to suit a larger CHRA

Profile available: SS2 500HP and SS3 600HP using Ball bearing CHRA

High flowed turbocharger bolt back to standard position as an OEM turbocharger. SS2 profile works with factory management system and fuel system. SS3 is recommended with a custom mapped ecu.

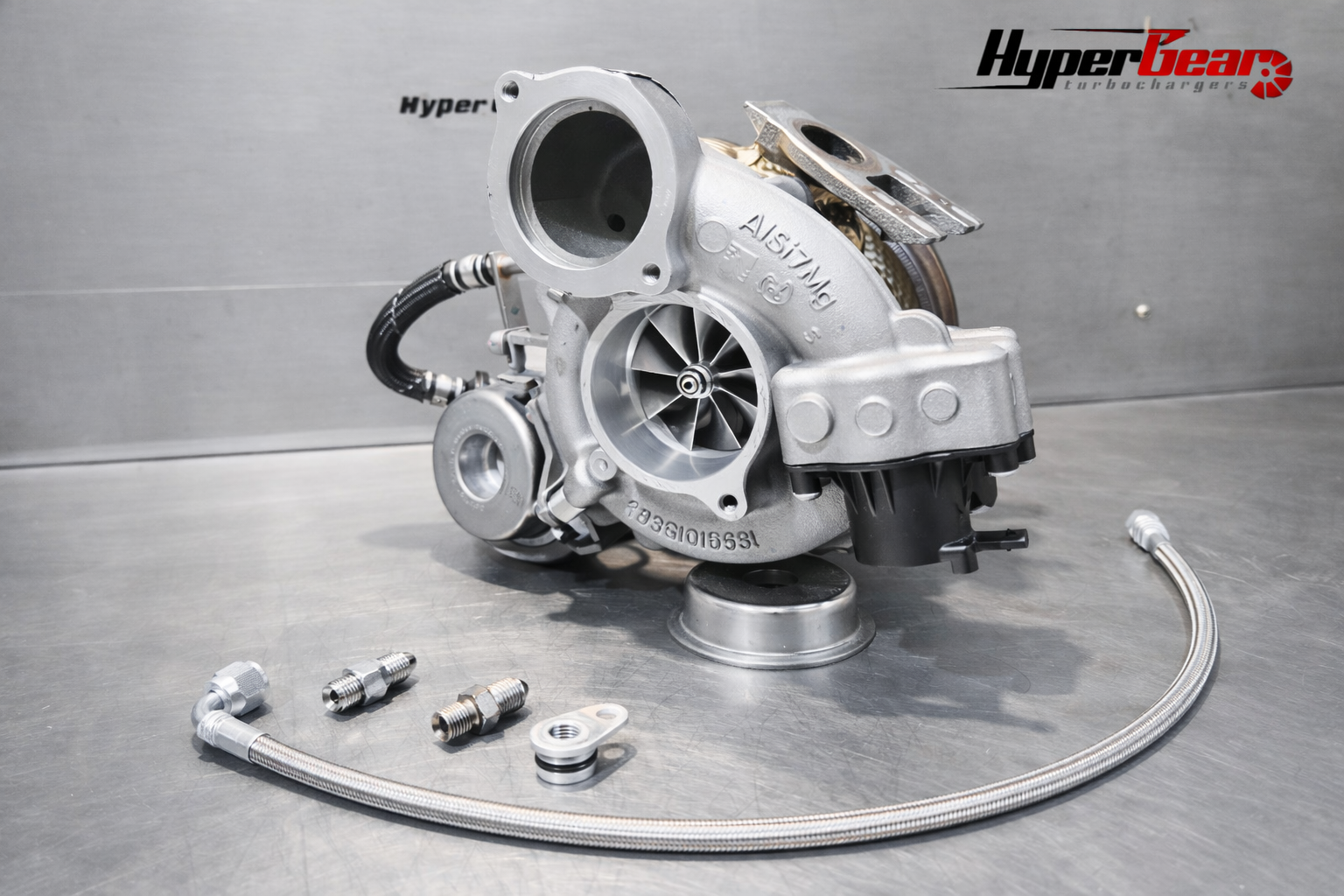

To carry out the service we will need the factory turbocharger and actuator, high flowed turbocharger do require braided water and oil lines to work. Leading time roughly 10 business days.

Warranty: 12 Month unlimited KM warranty comes with all of our turbochargers. Warranty voids if failure caused from Installation faults, Oil starvation, Operational, faults or object damages, We are not liable for the cost of many mechanical charges involved in fitting or removing of the product nor any shipping costs involved.

Weight 10 kg
Dimensions 30 × 30 × 30 cm

Dyno Results

Results:
Audi S4 Factory engine
Upgraded intercooler kit
Upsized turbo back exhaust
Upgraded intake pipe
Upgraded fuel system
Flash tuned factory ECU
356awkws with SS3 high flow on pump 98 fuel this is with factory
exhaust
375awkws with SS3 high flow on pump 98 fuel, this is
with upgraded factory exhaust, 2 bars @ 2900RPM
467awkws with SS3 high flow on blended 98 fuel

1 review for Audi 3L TFSI Audi S4 8W S5 F5 A6 A7 A8 SQ5 Turbocharger High flow service

  1. Johnny Zheng

    Using the SS3 high flow, made 380awkws with upgraded exhaust, and flash tune. 0 to 100 in 2.7 secs, Car’s crazy fast. Highly recommended.
