BMW B58 F2X F3X F4X M140i M240i 340i 440i, GR Supra 3.0T Turbocharger High flow service

(1 customer review)

$2,700.00$3,250.00

Clear
Product price
Additional options total:
Order total:

BMW B58 F2X F3X F4X M140i M240i 340i 440i, GR Supra,  3.0T Turbocharger High flow service

This service is for 3L inline 6 turbocharged BMW B58 turbochargers

Service includes:
Ceramic ball bearing CHRA upgrade
Upsized 5 axis billet compressor wheel
Upsized turbine wheel
Profile and machine factory compressor and turbine housings

Profiles available:
SS2 500HP: Recommended working with factory management and fuel system.
SS3 700HP: Recommended working with upgraded cooling, fuel, and tuned management system. SS3 profile option also comes with a custom 3 inches compressor inlet. 3 inches induction pipe is required working with it.

Dyno tune and checkup is recommended after turbo upgrade.

High flowed turbocharger bolt back to standard position aftermarket water and oil line kit is supplied with highflow service.

We will need the factory turbocharger, water and oil lines with actuator attached. The leading time to have the job completed is roughly 15 business days.

Warranty: 12 Month unlimited KM warranty comes with all of our turbochargers. Warranty voids if failure caused from Installation faults, Oil starvation, Operational, faults or object damages, We are not liable for the cost of many mechanical charges involved in fitting or removing of the product nor any shipping costs involved.



Weight 18 kg
Dimensions 30 × 30 × 60 cm

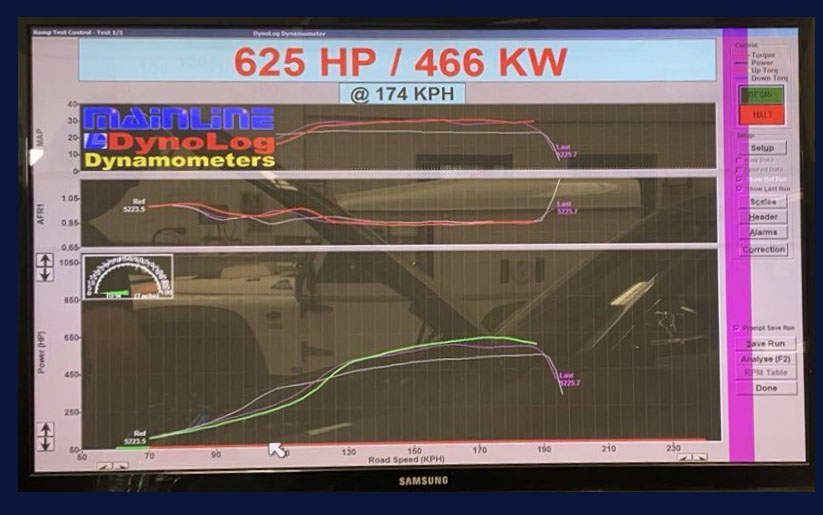

Dyno result

Results:
Mod list:

BMW M140i model
HyperGear SS3 high flowed turbocharger
P98 fuel and E85
4 inches dump pipe
Upgraded intercooler kit
HPFP Stage 2 525L fuel pump
BMP intake manifold with port injection
6x 440cc injectors

B58 SS3 411rwhp @ 19psi Pump 98 fuel
B58 SS3 625rwhp @ 25psi E65 Fuel
